Software


Download Free Software Packages

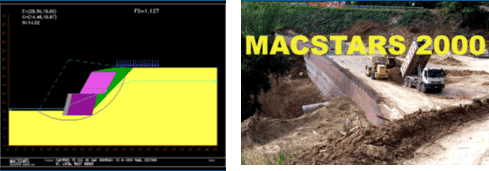

MACSTARS 2000 (New Windows Version)
Reinforced Soil Structure

To carry out the stability analysis of reinforced soil structures using Terramesh. Macstars 2000 allows the user to specify loading conditions, complex soil geometry’s, groundwater conditions and a combination of reinforcement blocks. The software can check one or more reinforced structures. The stability analysis can check for both internal and global failure modes as well as checks for bearing, overturning and sliding in the case wall structures.

Click here for installation information or call us (create a link to Software Request Form or to our web address)

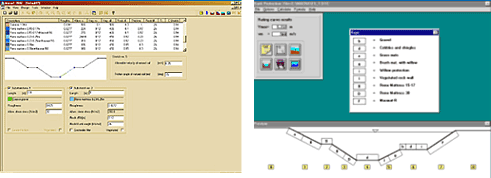

MACRA 1®
Bank Protection

This software provides the engineer with a rapid and efficient tool with which to conduct the hydraulic and shear stress analysis of watercourse cross-sections lined with both Maccaferri products and natural solutions with respect to both water flow and wave motion. The software allows the user to check for a range of hydraulic conditions for both the fully vegetated as well as for the post construction phase.

Click here for installation information or call us (create a link to Software Request Form or to our web address)

MACRA 2®
Gabion Weirs

This software was developed to provide engineers with a rapid and efficient tool with which to conduct the hydraulic and stability analysis of weirs carried out with Maccaferri’s products. It allows the user to check a large number of hydraulic conditions and different types of weir configurations. Stilling pools are also considered in the analysis.

Click here for installation information or call us (create a link to Software Request Form or to our web address)

GAWACWIN®
Gabion Walls

This software was developed to provide engineers with a rapid and efficient tool with which to conduct stability analysis of Maccaferri gabion retaining walls. It allows the user to analyze the full range of external, internal and global stability checks. Both traffic and seismic load cases are considered in the analysis.

Click here for installation information or call us (create a link to Software Request Form or to our web address)


SOFTWARE REQUEST FORM (create a link to Request Form)
